3.2.3 MOTF Status LEDs

The MOTF Status LEDs are used by the SP-ICE-3 Card's firmware to indicate activity on the MOTF encoder input signals.

Encoder Input

LEDs

X902 Motf1

D908, D907

X900 Motf2

D910, D909

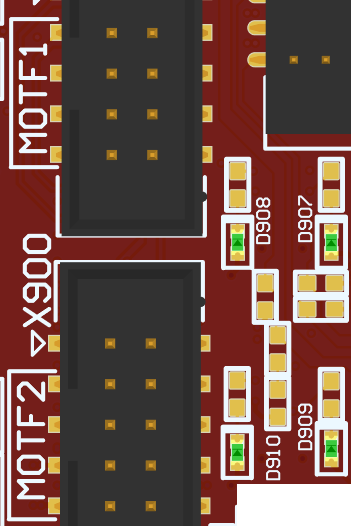

Location of MOTF Status LEDs
SP-ICE-3 MOTF Status LEDs Location Top View.svg not found.
SP-ICE-3-MOTF-Status-LEDs
