4.6.1 Connector J3

J3 is a simple 8-pin terminal block. It is used to transmit hardware trigger signals to a Teledyne DALSA camera.

J3 Pinout

Name

Signal

Pin

IP Trigger out

TTL out

1

IP Trigger in

TTL in

2

IP Trigger out 2

TTL out

3

IP Trigger in 2

TTL in

4

IP Trigger out 3

TTL out

5

IP Trigger out 4

TTL out

6

GND

7

5V

8

Top View

Sync Adapter Board RDM+CAM_J3.svg not found.
Connecting the camera

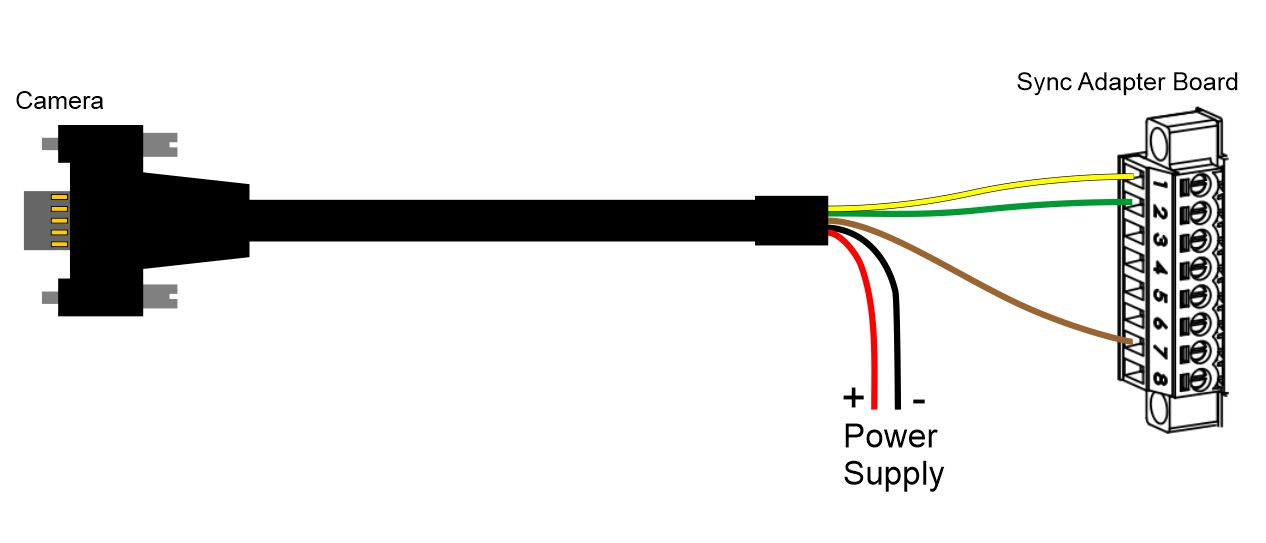

The following image shows how to wire the camera I/O & power cable to the adapter board and power supply.

Sync Adapter Board RDM+CAM J 3 Camera connection
