4.1.7 GPIO Preset Configuration: XY2-100 Adapter

The XY2-100 Adapter's configuration is factory preset, and cannot be altered by the user.

The preset configuration can be displayed by following the instructions in 10.4.3 GPIO Preset Configurations for Adapters.

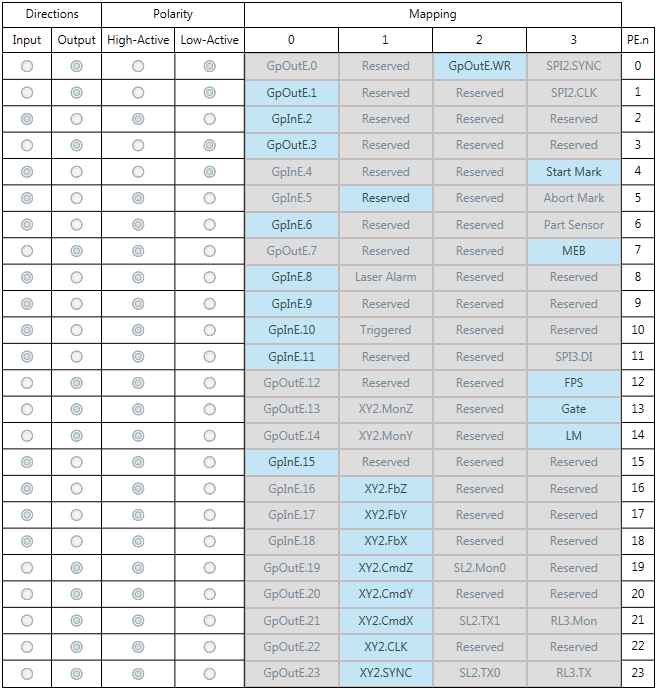

XY2-100 Adapter R2: GPIO Preset Configuration Port E
SP-ICE-3 GpioE XY 2-100 Adapter Board R 2 Configuration
