6.2.2.1 Wiring Example - Coherent ARM

Example wiring scheme for connecting a Coherent ARM laser to the SP-ICE-3 card.

Wiring
Caution note  Caution

  • RAYLASE GmbH makes no warranty concerning the completeness, reliability, or accuracy of this information.

  • Any action you take on the basis of the information in this document is strictly at your own risk, and RAYLASE GmbH will not assume responsibility for any damage to property or injury to persons.

  • RAYLASE GmbH is not responsible for laser safety: appropriate measures must be taken by the user.
    Please see also section 1.4.1 Laser Safety

Note  Note

  • Although you may be able to use one or more of these schemes as a reference for your particular laser and application, please be aware that RAYLASE GmbH can neither guarantee success, nor provide individual wiring diagrams for every possible use-case or application.

  • In particular, RAYLASE GmbH does not guarantee the accuracy or present validity of any OEM data shown in the following sections.

LaserWiringExample-Coherent-ARM.svg not found.

Recommended Signal Mapping and Usage

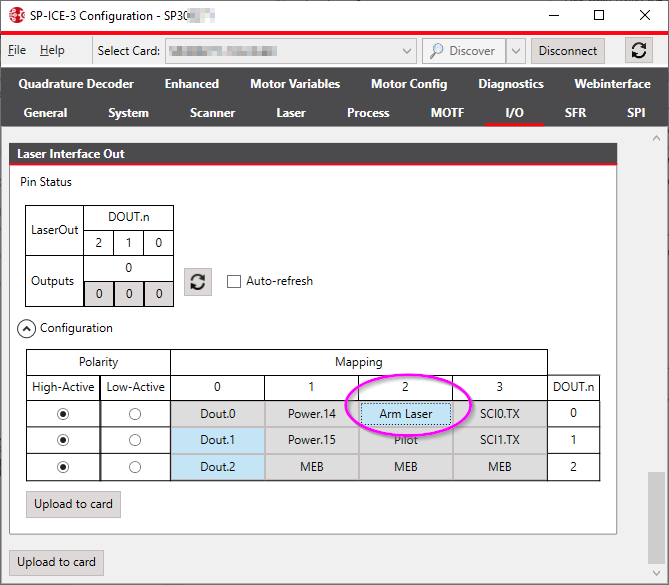

SPICE3Config: Laser Out configuration for Coherent ARM laser.
SP-ICE-3 Configuration-Laser-Out-for-Coherent-ARM
SPICE3Config: Power Settings configuration for Coherent ARM laser.
SP-ICE-3 Configuration-Power-Settings-Hot-DAC 0-Simmer-NONE
Recommended Signal Usage

Laser Unit

Power-level Command

X907 Output Signal Name

Laser Input Signal Name

Core

AppendPower(UInt16)(power-level)

ANALOG1

Power Center

Ring

AppendDacValue(Dac1, power-level)

ANALOG2

Power Ring

Caution note  Caution

  • The power level of the ANALOG1 and ANALOG2 signals is never automatically reset to zero.

  • Each signal independently retains the power level that was last assigned to it.

  • Changing the power level of one of them leaves the other signal unaltered.

  • All power level changes for these signals must be individually and explicitly commanded, either via AppendPower(UInt16) or via AppendDacValue.

The recommended signal configuration and usage, shown above, are not the only ones possible.

For your application you might prefer, for instance, to set the power-level for the Ring laser unit with the AppendPower(UInt16)(power-level) command.
For this, and assuming that the rest of the configuration remains unchanged, you would need to

Alternatively, you could simply re-wire the hardware signals on the physical connectors, thus swapping the Core/Ring assignment without requiring any changes to your application code.
