18.4 Special Function Register Status

The status of Special Function Registers can be examined.

Please follow 17.1 Accessing the card with the SP-ICE 3 Configuration Tool for preparatory steps leading up to start of the following procedure.

Special Function Register Status Procedure

  1. Select the SFR tab.

    Scroll and resize it, if necessary, so that the required items are visible.

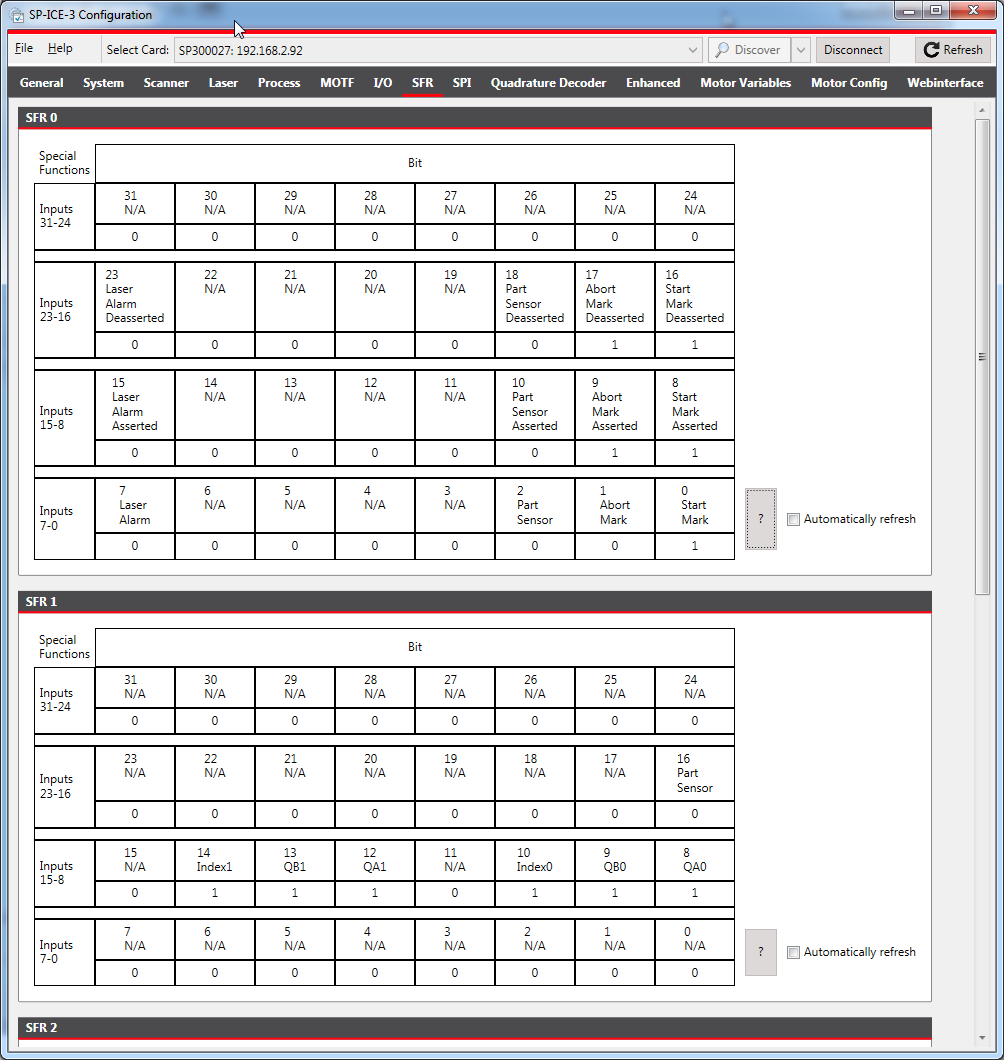

    SP-ICE-3 Configuration-SpecialFunctionRegisterStatus
